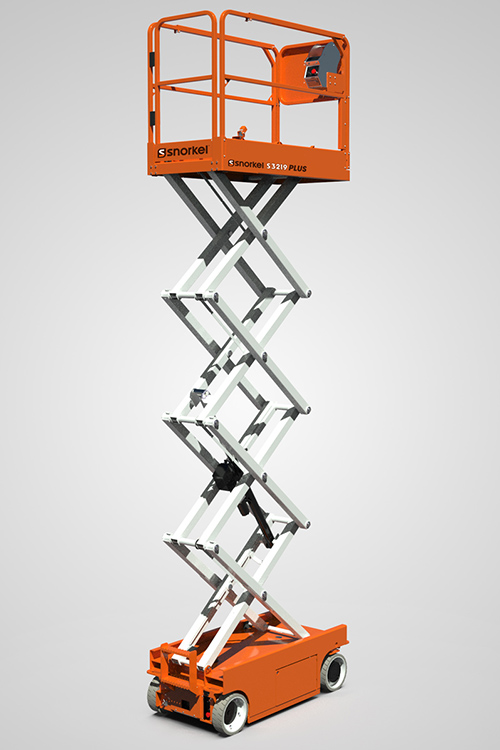

SNORKEL Electric Scissor Lifts S3219 PLUS

  • Max. working height: 7.79m
  • Platform capacity: 272.1kg
  • Stowed height: 1.98m
  • Weight: 1,308kg

Description

Designed to address applications with a very small footprint, the S3219 PLUS all-electric scissor lift is suitable for indoor and outdoor use. It fits through a standard doorway and in an elevator. Easy to maneuver in tight situations. A roll-out deck extension and 272.1kg maximum platform capacity make this model ideal for two people or one person plus materials. AGM batteries and non-marking solid rubber tires enable clean and quiet indoor use. Great for order picking, hospitals, and clean environments. Zero maintenance and 5-year structural warranty.

Functions

  • 100% Operation 2 person indoor, 1 person outdoor
  • AGM battery operated scissor lift
  • No hydraulic hoses
  • Fits standard doorway without folding rails
  • Roll-out-deck with dual locks
  • Non-marking tires—largest wheels/tires in class
  • Heavy-duty spindles/steering
  • Heavy-duty fixed control box
  • Descent and all-motion alarms
  • CE approved
  • Proportional control, all functions
  • Platform overload protection
  • 110 V (15 amp) power to platform
  • On-board diagnostics, hour meter, battery meter
  • Automatic integrated battery charger
  • Manual safety lowering system
  • Flashing amber strobe
  • Forklift pockets, crane lifting points
  • Lanyard attachment points
  • Swing-out service trays
  • 2-year parts & labour warranty
  • 5-year structural warranty

View all of our Scissor Lifts here.

Additional information

Max. Working Height

7.79m

Max. Platform Height

5.79m

Platform Size (Stowed)

0.8m x 1.75m

Platform Size (Extended)

0.8m x 2.66m

Extension Deck Length

0.91m

Overall Length

1.8m

Overall Width

0.81m

Stowed Height

1.98m

Ground Clearance

0.06m

Platform Capacity (SWL)

272.1kg

Max. Wind Speed

12.5m/s

Max. Drive Height

5.79m

Max. Drive Speed

4km/h

Max. Drive Speed (Elevated)

0.8km/h

Raise/Lower Time

35/20 seconds

Gradeability

25%

Max. Operating Slope (Side to Side)

1.5º

Max. Operating Slope (Front to Rear)

Wheels

0.32m

Controls

proportional

Drive System

dual DC motors

Parking Brake

2-wheel, spring applied

Power Source

4x 6V 213Ah AGM Batteries

Charger

10.5A

Weight

1,308kg

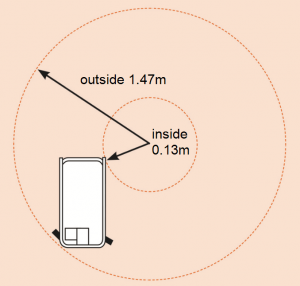

Turning Radius

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Denmark provides nationwide coverage for any warranty or technical support required in Denmark. For more information, please contact us.

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate operators manuals for detailed instructions on the proper use and maintenance.
