A38E

Max. working height: 13.5m
Platform capacity: 215kg
Stowed height: 2.0m
Weight: 3,880kg

Add to quote

Description

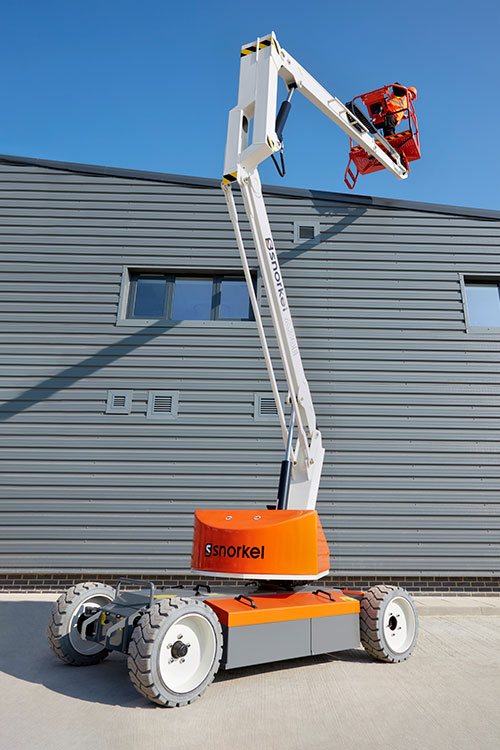

The class-leading Snorkel A38E is a lightweight, durable and reliable Electric articulated boom lift. Designed for internal and external use, this lift benefits from compact dimensions and an articulating/telescopic boom configuration for maximum maneuverability and versatility.

Standard Features

Snorkel Guard™ secondary guarding system
Proportional one-handed controls
Hydraulic platform rotation
Minimal front boom overhang
Ultra-tight inside turning radius
Power line to platform
Tilt alarm and cut-out
2 person indoor
1 person outdoor
Direct DC drive series wired wheel motors
Non-marking tyres
Duplicate boom controls at ground level
Hour meter & on-board diagnostics display
Flashing amber light
2 year parts & labour, 5 year structural warranty
CE approved

Additional information

Max. Working Height	13.5m
Max. Platform Height	11.5m
Max. Working Outreach	6.1m
Clearance Height at Max. Outreach	5.4m
Platform Size	0.69m x 1.11m
Overall Width	1.5m
Overall Length	4.1m
Stowed Height	2.0m
Ground Clearance	120mm
Platform Capacity (SWL)	215kg
Max. Drive Height	11.5m
Max. Wind Speed	12.5m/s
Max. Drive Speed (Stowed)	4.0km/h
Max. Drive Speed (Elevated)	0.65km/h
Platform Rotation	90º (+45º/-45º)
Turret Rotation	360º non-continuous
Tailswing (Elevated)	0m
Tailswing (Stowed)	1.4m
Raise/Lower Time	83/68 sec
Gradeability	36%
Inside Turning Radius	1.12m
Outside Turning Radius	2.4m
Tyres	22 x 9 16 non-marking rubber
Controls	proportional
Drive System	direct drive DC
Power Source	8 x 6V, 220Ah batteries
Battery Charger	100-200V/15A
Weight	3,880kg

Options

Special paint colours
Environmental hydraulic oil
Snorkel OnSite™ telematics

Working Envelope

Snorkel A38E Working Envelope

Video

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Denmark provides nationwide coverage for any warranty or technical support required in Denmark. For more information, please contact us.
