Description

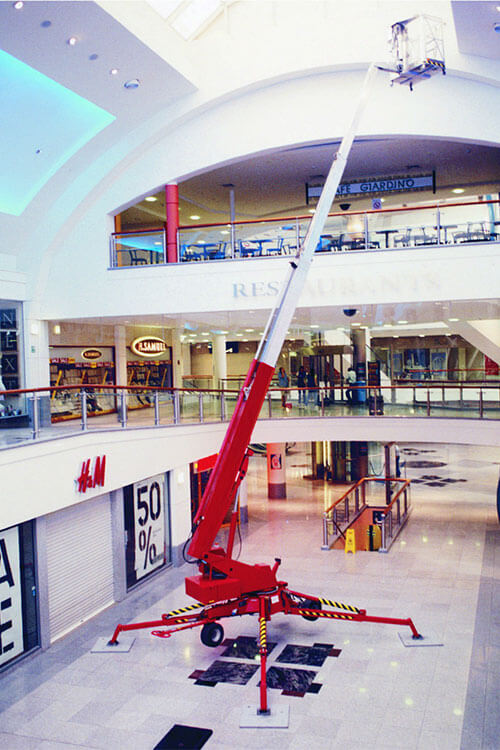

This narrow DL-lift series was specially designed for rental companies, larger industries, shopping centres, airports, etc.
The compact lift construction with a width of merely 890 mm and a detachable basket makes lift operations even possible in places where lifts of other brands fail.
Thanks to the self-drive system the lift is easy to manoeuvre and move from one working position to another by one operator only and without the use of additional aids.
The three-wheeled-drive is standard and allows easy transport even under problematic conditions, like for instance extreme climbing angles or soft surfaces. Working tasks on sites are therefore no problem at all.

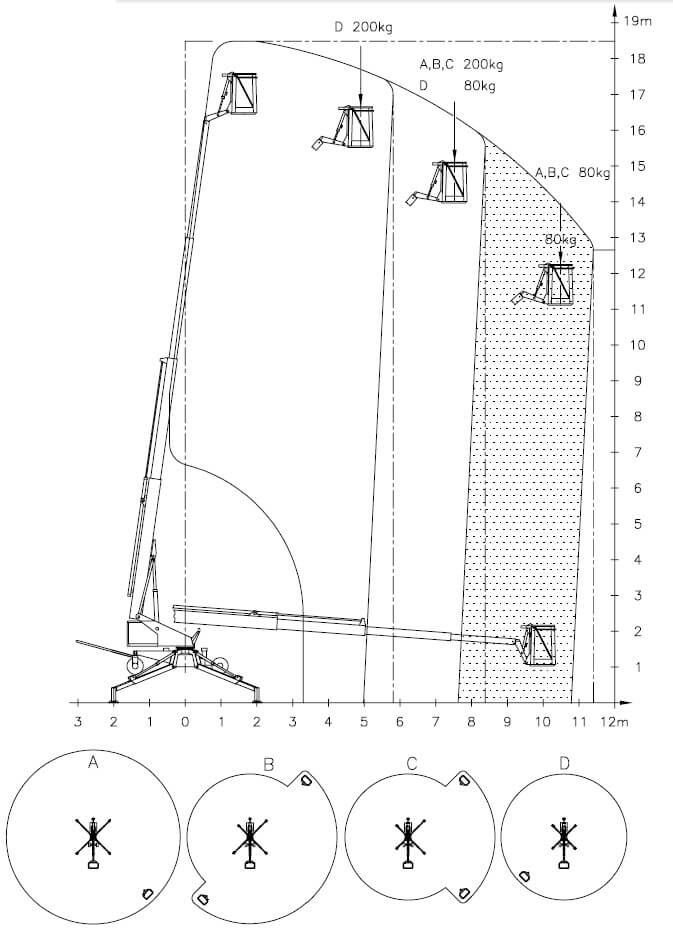

Max. working heights are from 18,8 up to 22 metres. Automatic restriction of the load moment ensures optimum reach to suit the load in the basket.
DL19/22N are very flexible lifts which, as standard, are supplied for battery operation. As extra accessories, the lifts of this series can be delivered with diesel engine either with or without generator.
All DENKA LIFTs meet the most stringent safety standards.
The electrical and hydraulic system feature double safety devices, the cylinders have hose break valves, and all the movements of the lift have a pressure control valve safety system.
The telescopic boom is made of specially extruded aluminium profiles, which ensure stability with a low weight.
The combination of this excellent boom section and the smooth proportional control system provides the operator in the basket with a stable, safe and highly functional workplace.
Standard Features
- Rotating detachable alu basket 1200 mm
- Battery operation
- Proportional control
- Hydraulic outriggers
- Hydraulic wheel drive
- ELCB 30 mA
- Hour counter
- Charging key
- Switch for raising boom during selfdrive
