• Capacity: 4.9t x 2.1m
  • Max lifting height: 16.50m
  • Max working radius: 14.67m x 0.20t
  • Machine weight: 9,450kg

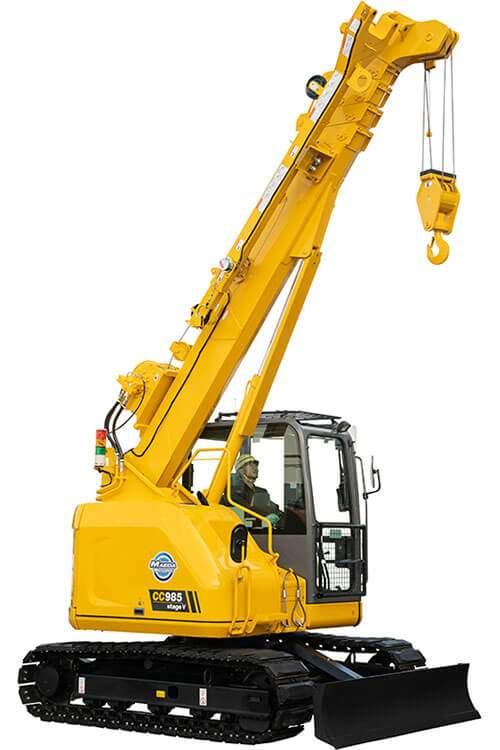

The latest version the CC985 crawler crane has many improved features, such as a new engine, new wider cab and an improved moment limiter. With a 16.5m working height, new 7” multi function monitor and a massive 2000kg pick and carry capacity, this crane offers improved features coupled with great lifting duties. The optional 1500kg 2-section Fly Jib increases maximum lifting height to 20.2m. This model also includes an EU stage IIIB compliant engine to make it more environmentally friendly.

  • 4.9 Ton Max Capacity
  • 16.5m Max Working Height
  • 20.2m with Optional Fly Jib Attachment
  • 2000kg Pick & Carry Duty
  • 7 inch Multi Monitor
  • Powerful Two Speed Winch with Hydraulic Disc Brake
  • Slew Restriction Device
  • Hydrostatic Transmission
  • 4 Fall / 2 Fall Hook Block
  • Tilt Sensor/Alarm
  • Rear View Camera
  • Automatic Pentagonal 5-Section Boom
  • Data Logger
  • 2 Year Warranty

Additional information

Crane Capacity

4.9t x 2.1m

Max. Working Radius

14.67m x 0.20t

Max. Lifting Height

16.50m (20.2m with fly jib)

Max. Reach Below Ground

-25.0m (4 falls)

Pick & Carry Capacity


Travel Speed


Travel Ground Pressure

(with fly jib) – 47.1kpa [0.48kgf/cm2], 46.8kpa [0.47kgf/cm2]



Engine Rated Output



5,190mm (L) x 2,320mm (W) x 2,730mm (H)



Machine Weight

9,450kg (9,630kg with fly jib) (Rubber pads: +280kg)

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and DENKA-Lift operators manual for detailed instructions on the proper use and maintenance.
