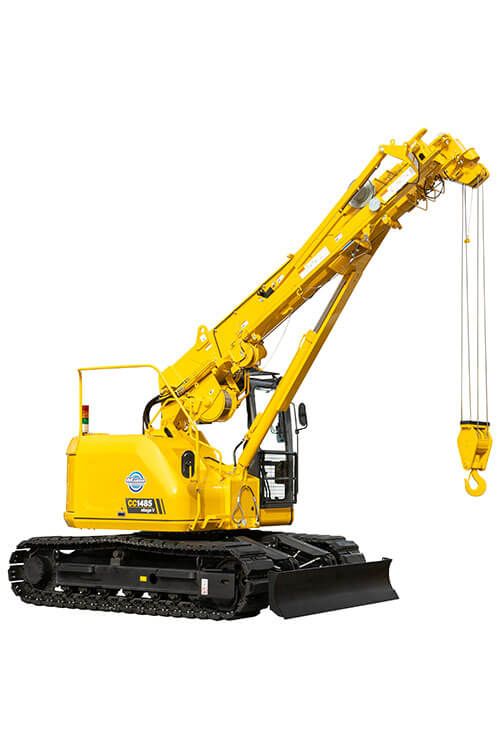

Maeda CC1485S-2

  • Capacity: 6.0t x 2.6m
  • Max lifting height: 16.70m
  • Max working radius: 16.10m x 0.43t
  • Machine weight: 14,560kg

Description

The updated CC1485 model boasts many market-leading features including a massive 6 ton lifting capacity, 16.3m boom, rear view camera and 7” monitor as standard. No outriggers mean an extremely slim working footprint. In addition this environmentally-friendly machine is equipped with an EU Stage V compliant engine making it more fuel efficient. The fly Jib attachment sees a move towards a more traditional wrap-around system which is much more user-friendly and easier to operate. Blade is now available as an option.

  • 6.0 Ton Max Capacity
  • 16.7m Max Working Height
  • 22.0m with Optional Fly Jib
  • 2000kg Pick & Carry Duty
  • Minimal Tail Swing
  • Fully Enclosed Air-Conditioned Cab with Link Slide Door
  • 7″ Multi Monitor
  • Powerful Two Speed Winch with Hydraulic Disc Brake
  • 4 fall/2 fall Hook Block
  • Tilt Sensor/Alarm
  • Automatic Heptagonal5-Section Boom
  • Data Logger
  • 2 Year Warranty

Additional information

Crane Capacity

6.0t x 2.6m

Max. Working Radius

16.1m

Max. Lifting Height

16.7m (22.0m with fly jib)

Max. Reach Below Ground

-24.5m (4 falls), -103,5m (1 fall)

Pick & Carry Capacity

2,000kg

Travel Speed

0-3.1km/h

Travel Ground Pressure

(with blade & fly jib) – 54.5kpa [0.56kgf/cm2], 51.2kpa [0.52kgf/cm2]

Engine

ISUZU 4LE2XBJB / Diesel

Engine Rated Output

44.6kw/2,000rpm

Dimensions

6,560mm (L) x 2,490mm (W) x 2,865mm (H)

Tailswing

1,550mm

Machine Weight

14,560kg (14,860kg with fly jib)

Note: Specifications are subject to change without notice. Photos and diagrams on this website and within downloadable materials are for promotional purposes only. Refer to appropriate Snorkel operators manual and DENKA-Lift operators manual for detailed instructions on the proper use and maintenance.
